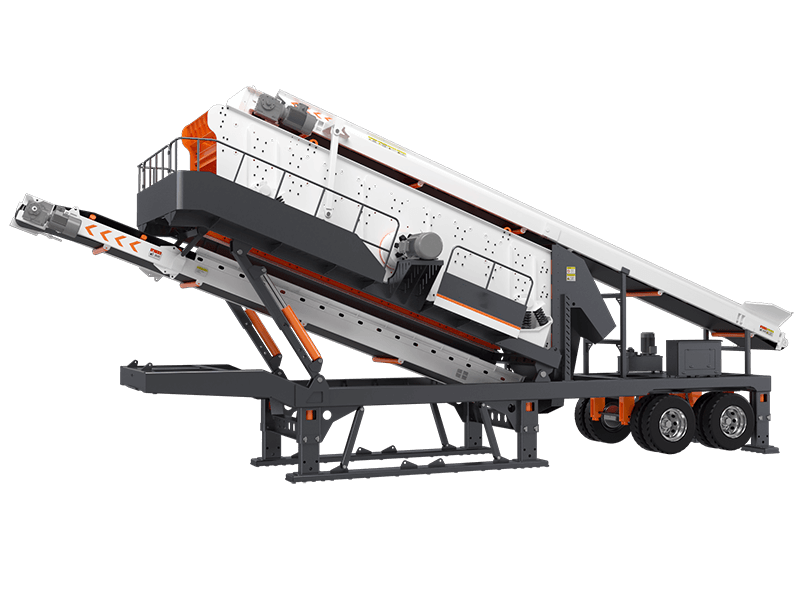

The SUNJEESPOM K3 Wheel-mounted Screening Plant is a high-tech equipment developed by our company based on actual working conditions. It has been optimized in terms of body structure, transportation, installation, and production time.
Compared with other Portable mobile crusher stations on the market, it has the characteristics of stronger screening capacity, lower transportation cost, easy installation and quick production.
It can be matched with other stone crushers to meet customer’s various discharging requirements.
As a leader in mobile crushing and screening technology, we also offer customized equipment to meet your specific needs.
1. Easy to install and transport. With the unique hydraulic boots design, after the equipment arrives at the customer site, the electro-hydraulic legs can be quickly put into place to achieve quick installation.
2. Thanks to compact structure, the equipment can be put into container, helping customers greatly reduce freight and save costs.
3. The equipment can be freely combined with other crushing equipment to form a crushing and screening production line;
4. Multiple configuration options, two-layer screen or three-layer screen to meet different user requirements.
Materials through the belt conveyor to the crushing plant crushing within the crushed materials after crushing fall into the belt conveyor to send out the materials sent out through the transfer hopper folded back to the vibrating screen above the belt conveyor, the materials transported to the vibrating screen, vibrating screen screen screen qualified materials or by the hopper to send out or by the vibrating screen underneath the belt conveyor to send out of the stacks, screening unqualified material is directly sent back to the crusher crushing chamber to continue to crushing.
Model | K3-S1860 | K3-S2160 | K3-S2460 |
Vibrating Screen | 1800X6000mm | 2100x6000mm | 2400x6000mm |
Capacity | 100-500t/h | 100-750 t/h | 200-900 t/h |
Motor Power | 22KW | 30KW | 37KW |
Feeding belt conveyor | B1000*11.2m | B1200*11.2m | B1200*11.2m |
Working size (L*W*H) | 14318*4395*6188mm | 14136*4642*6800mm | 14531*5451*6802mm |
