Wheel-Mounted Portable Crusher

Whee-mounted Sand-making plant

Capacity: 120-442t/h

Whee-mounted Sand-making plant
[content:title]
[content:title]
[content:title]

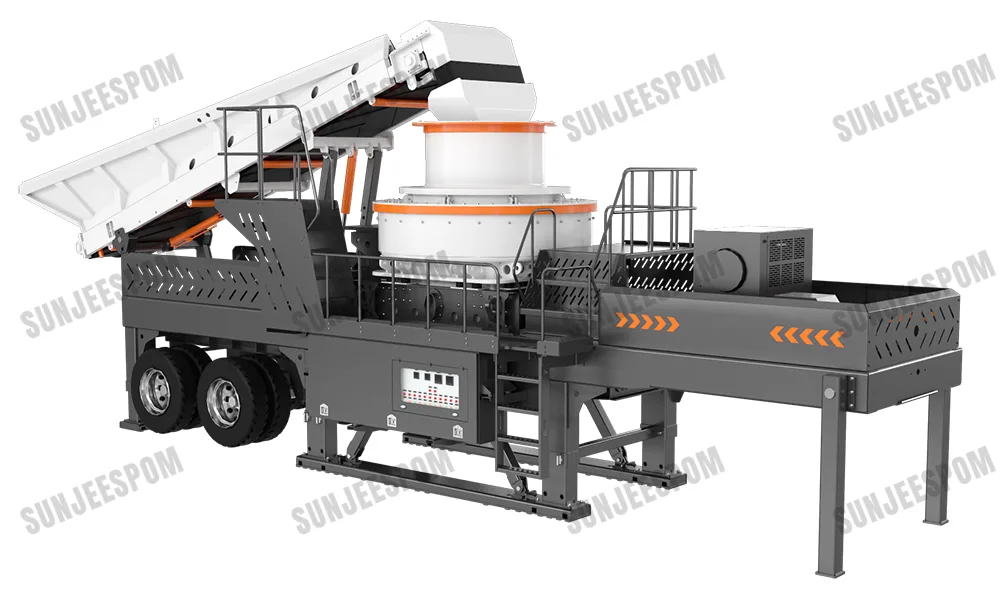

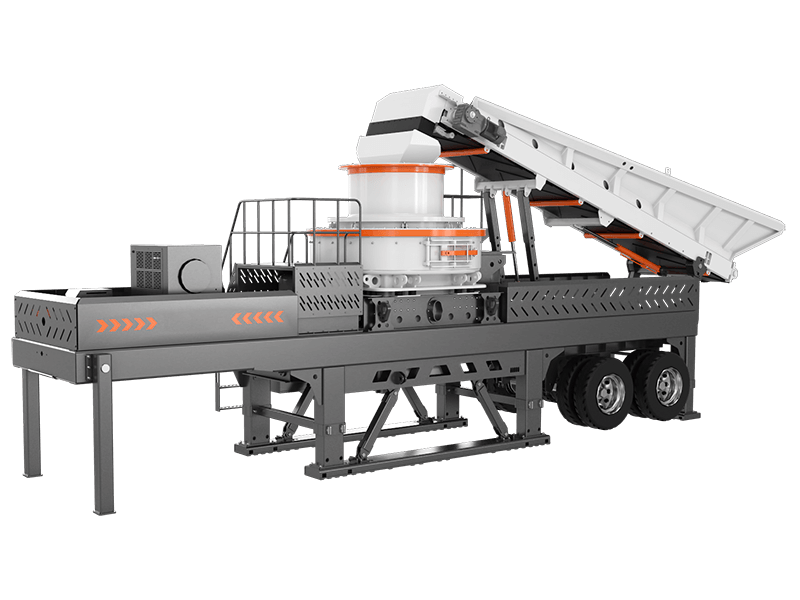

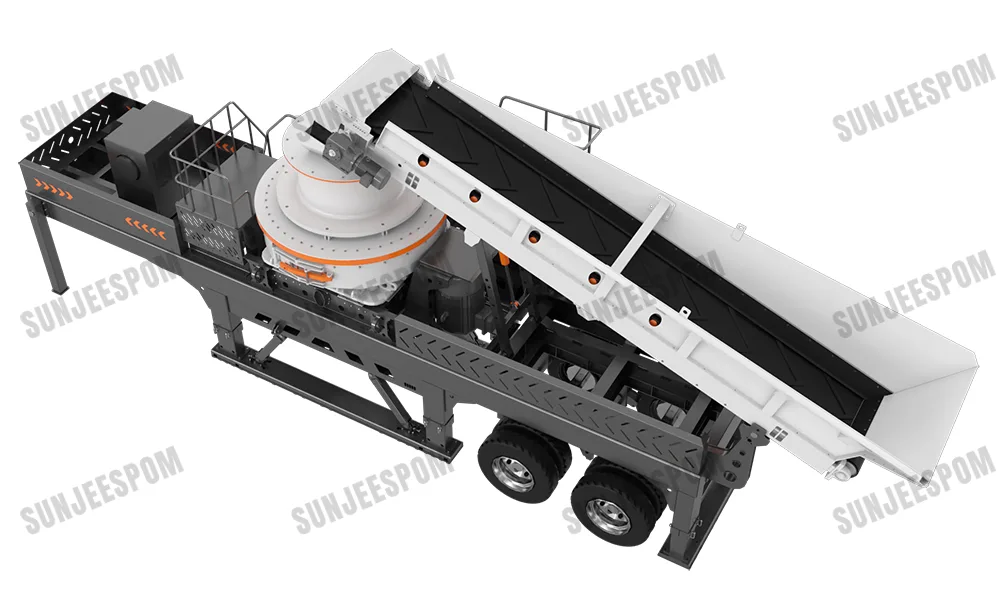

Wheel mounted mobile vertical shaft impact crusher(VSI) also called mobile sand making plant, can be transported to another location with only one truck head and will be ready to use in a short time,mobile vertical shaft crushers that works with the principle of hitting stone by stone,it is build to produce 0-5mm sand and high quality cubic shaped aggregates,in addition to the materials which is provided by pre-crushing in primary and secondary crushing operations, it is also possible to feed the system directly with natural stone that is not bigger than 40 mm.

Features and technology advantages

1.The feeding belt has an adjustable speed and can feed materials evenly. It is equipped with a 4.5m³ transfer feeding silo and has the function of transferring and storing materials to ensure sustainable and uninterrupted operation and is more energy-saving.

2.The hopper can be loaded with a loader to ensure a variety of flexible feeding; it solves the problem of idle materials participating in the crushing process.

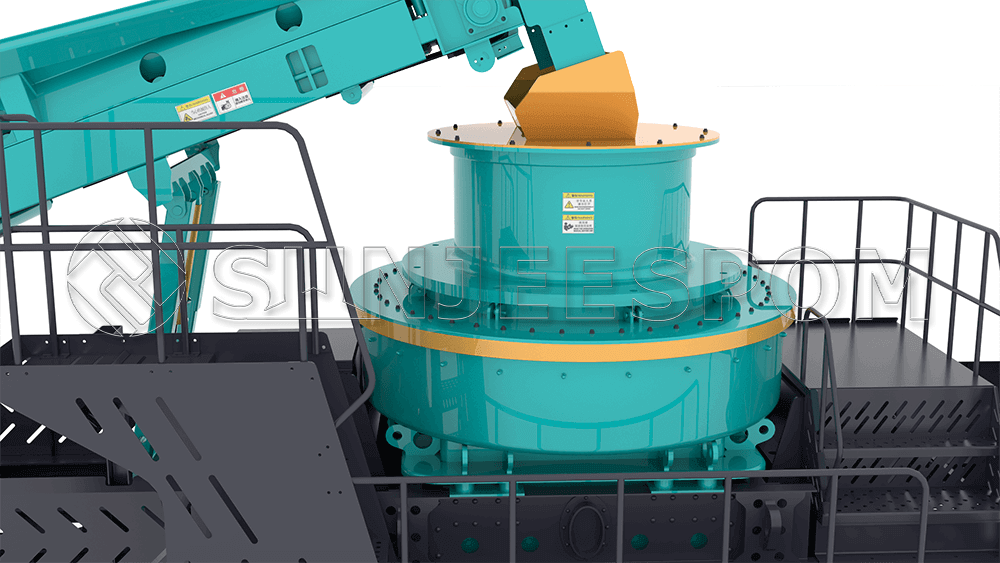

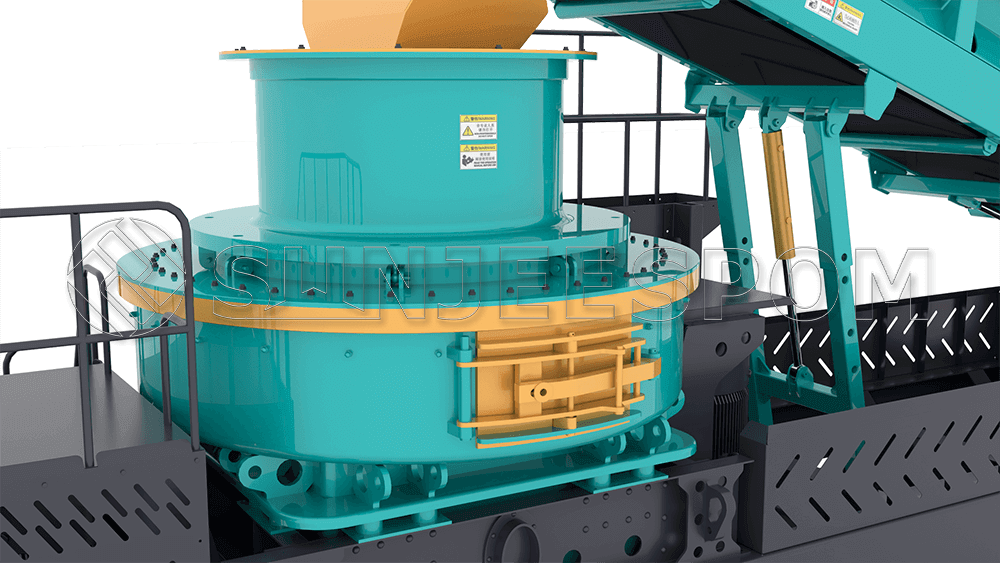

3.The main equipment adopts high production efficiency 5X series VSI crusher, which can be equipped with return screening equipment to become an independent crushing unit to meet various combinations of customers,easily configurable for different end products.

4.The working site only needs to have the road surface leveled and compacted to achieve working conditions. there is no need for cement foundations, after the station layout, the hydraulic cylinder legs are extended to quickly enter the working mode.which greatly reduces costs.

5.The mobile chassis and all equipment can load into container,avoid bulk ship/roll ship transportation, save a lot shipping cost,protect machine from sea corrosion.

6.The belt conveyor are vehicle-mounted,minimize on-site installation work,also easier move to other project site.

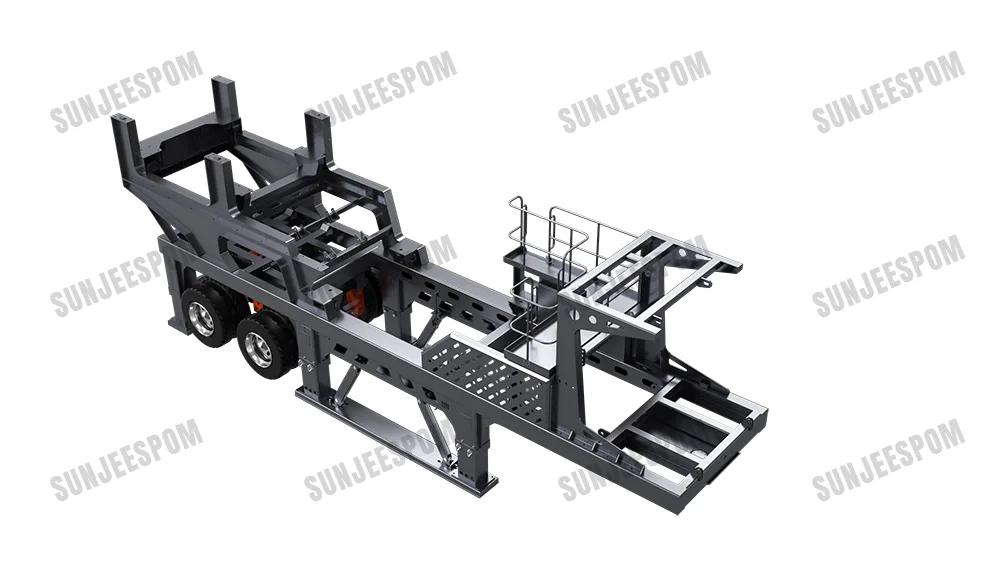

7.The frame and tire module adopt a modular design, which can quickly switch between frame type and tire type; satisfying customers' multiple choices.

How it works

A kind of body is common for 8 models, screening unit interchangeable system, crushing unit interchangeable system and sand washing unit interchangeable system, only need to re-invest the cost of stand-alone equipment, within a short period of time, can be realised in the same body of different models of screening unit, impact crusher and cone crusher interchangeable system and different models of sand washing unit interchangeable system, the whole machine between the system matching, adapting to the occasion of a wider range of crushing function stronger.

Specification

ModelK3-VSI8522-1CK3-5X9532-1CK3-5X1145-1C
VSI modelVSI85225X95325X1145
Belt feederB800B1000B1200
Capacity Potential(t/h)120-380180-400250-442
Max feeding size (mm)35-4040-4545-50
Weight(t)403035
Transport dimensions(mm)Disassemble and shipDisassemble and shipDisassemble and ship
Working dimensions(mm)13305*2825*434613329*2825*442714175*2825*4306

From customer

The main equipment adopts high production efficiency 5X series VSI crusher, which can be equipped with return screening equipment to become an independent crushing unit to meet various combinations of customers,easily configurable for different end products.

To find out more casesTo find out more cases
