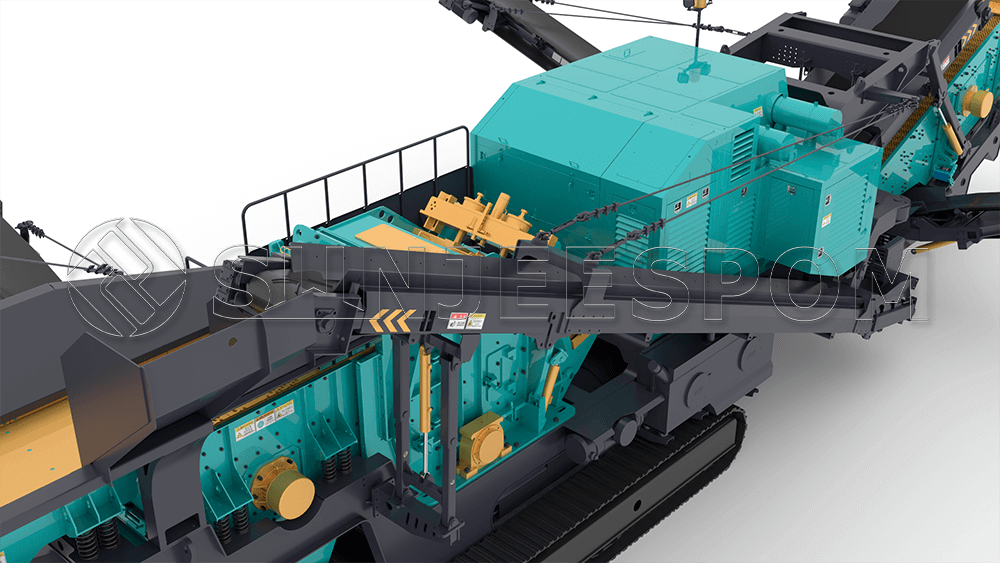

The SUNJEESPOM Track-mounted Impact Crusher is a high-performance, multi-functional mobile crushing equipment with a high-capacity double deck screen and a return conveyor, widely used in asphalt recycling, construction waste crushing, soft rocks and coal crushing; It can replace stationary crushing systems, which reduces the need for hauling and thus cuts operational costs.
The main machine is specially designed for mobile applications, and features a large feed opening and robust construction for long-lasting, reliable operation.
The vehicle-mounted screening machine has a screening area of up to 8m³, which can meet various discharging requirements of customers;
The screening unit is easy to connect or separate when needed.

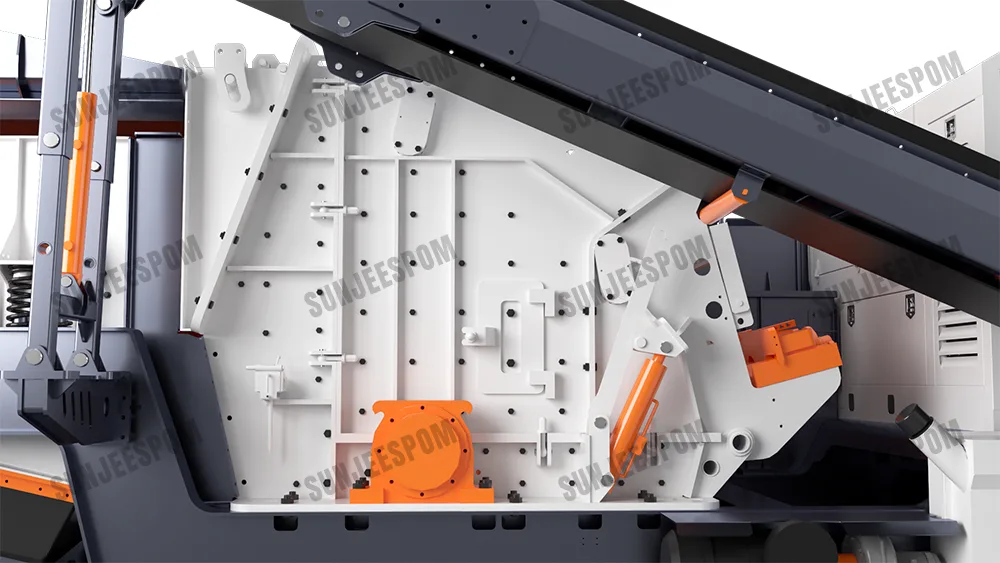

Adopt high-performance LF impact crusher, which can always provide high capacity and a high reduction rate
It can replace stationary crushing systems, which reduces the need for hauling and thus cuts operational costs.

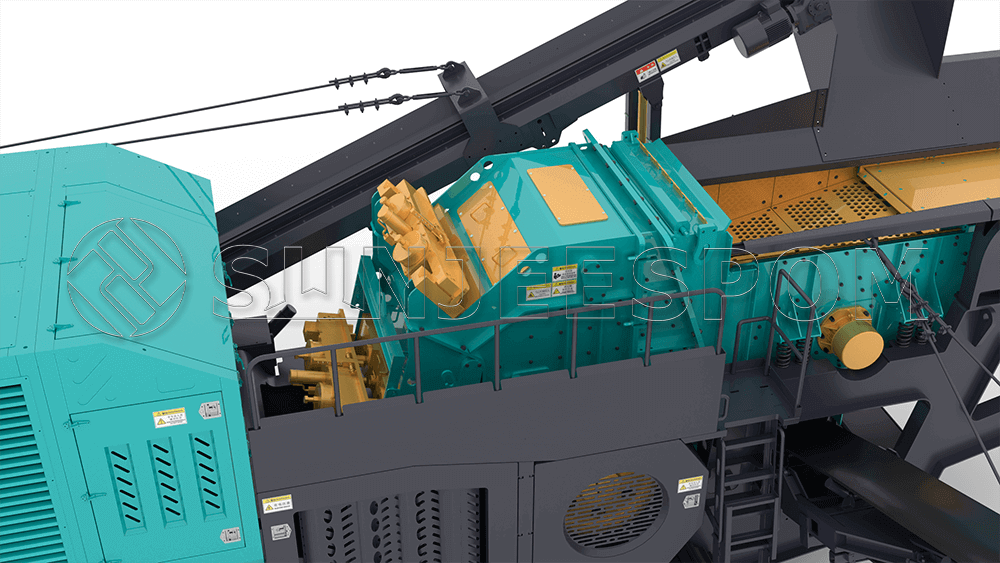

Driven by the motor, the rotor rotates at a high speed, and the construction waste enters the first crushing chamber and crushes with the plate hammers of the rotor, and then enters the second crushing chamber for crushing. During the crushing process, not only the impact between the construction waste and the plate hammers and liner plate is formed, but also the stone beating and shaping between the plate hammers and in the crushing chamber is completed, and finally discharged from the discharge port.
Impact Crusher Model | TF150 | TF250 | TF350 |
Capacity Potential | 100-200tph | 200-400tph | 300-500tph |
Inlet Opening | 820mm x 980mm | 960mm x 1360mm | 1050 x 1700mm |
Max feeding size | 500mm | 700mm | 800mm |
Operation weight | 45 tons | 65 tons | 70tons |
Generator | 300kW CUMMINS | 500kW CUMMINS | 500kW CUMMINS |
Transport Dimensions | Height 4.0m | Width 3.5m | Length 13.45m | Height 4.1m | Width 3.6m | Length 16.863m | Height 4.193m | Width 4.244m | Length 19.822m |
Working Dimensions | Height 3.85m | Width 7.786m | Length 17.2m | Height 4.8m | Width 8.81m | Length 20.42m | Height 4.832m | Width 11.192m | Length 21.439m |
It is the ideal machine for high-capacity contracting jobs due to its low transport height, which enables easy transport on a standard trailer.
