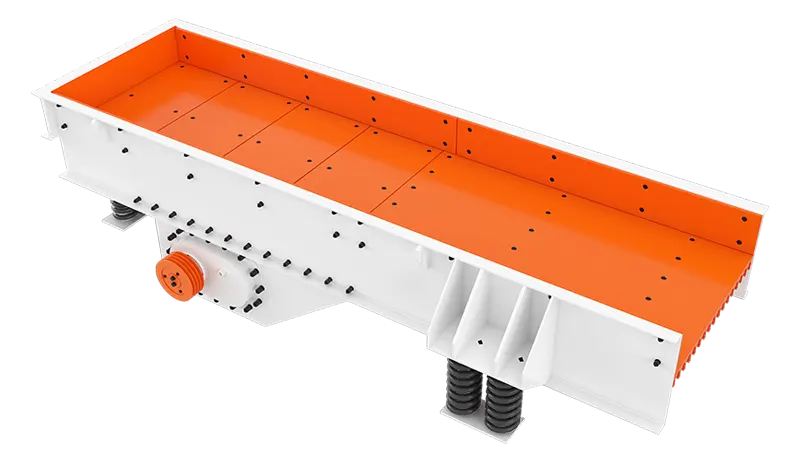

ZSW Vibrating Feeder

Feeding Size: ≤1000mm
Capacity: 80-800t/h

ZSW Vibrating Feeder

Vibrating feeders are often used in the mining, aggregate and recycling industries to transport material from one process to the next or to remove material from stockpiles. The feeder ensures that bulk material is fed in appropriate quantities and that dry or wet stones and materials are fed evenly and stably.

Durable feeders enable reliable, productive operation

Vibratory feeders provide reliable performance in a variety of circuits, even under the most demanding operating conditions. Designed for versatility and safety, these feeders help increase production capacity and reduce operating costs.

Proven reliability

The robustly designed vibratory feeders provide long-term, reliable performance with minimal maintenance downtime, even in heavy-duty applications. Each feeder is designed and manufactured for different requirements and offers stable performance throughout its lifetime.

Safety in operation and maintenance

The vibrating feeder is designed according to the strictest safety regulations and has various safety features to ensure maximum safety during operation. In addition, spare and wearing parts are readily available and easily replaceable, minimizing maintenance and downtime.

Versatile in use

The feeders can be configured to suit your operational requirements, including stationary or mobile production lines, surface or underground applications and operations ranging from mineral processing to direct feeding of crushers or other feeders.

The overall performance can be further optimized with optional functions and components.

High productivity

Vibrating feeders are designed for consistent, high performance to ensure maximum productivity. The feeder is robustly designed and works seamlessly with other equipment to ensure high performance and cost efficiency

Features and technology advantages

Special grate design, the distance between the grates can be adjusted, and the clay in the raw material can be pre-screened.

Strong impact resistance, which can ensure continuous and uniform feeding.

The optional motor with frequency conversion for speed regulation enables convenient control of feeding and eliminates the need for frequent motor start-ups.

Low profile for cost effective installation.

Easily adjustable functions ensure customized performance.

Easily removable mechanism for simple maintenance.

How it works

The electromotor drives the eccentric block of the exciter to rotate with high speed through the v-shaped belt. The eccentric block can produce big eccentric force, and the exciting screen box will do circular motion with certain amplitude. The materials on the slant screen will be influenced by the impulse transmitted from the screen box and do continuous throwing motion, and the materials smaller than the screen hole will go through the screen, thus realizing classifying.

Specification

ModelSize of Trough(mm)Feeding Size(mm)Motor Power(kw)Capacity(t/h)Overall Dimension(mm)
GZD-650X2300650x2300≤3001.1x2802300x1360x780
ZSW-850X3000850x3000≤4007.5x1180-1203110x1800x1600
ZSW-960X3800960x3800≤50011-15120-2103850x1950x1630
ZSW-1100X42001100x4200≤58018.5200-4304400x2050x1660
ZSW-1100X49001100x4900≤58018.5280-5005200x2050x1700
ZSW-1300X49001300x4900≤65022450-6002500x2350x1750
ZSW-1300X60001300x6000≤70030450-6806100x2350x1750
ZSW-1500X60001500x6000≤100037400-8006100x2550x1860

From customer

Special grate bar design can prevent material clogging, and play a primary screening of materials, thereby increasing production. The spring device buffers the vibration of the body, effectively avoids damage to the body, and prolongs the service life
