Crushing and Sand Making Equipment
Feeding Size: 38-560mm
Capacity: 27-1080t/h
SH Single - Cylinder Hydraulic Cone Crusher is developed with advanced crushing technology, integrating mechanical, hydraulic, electrical and intelligent control, Internet control system and other technologies. The new crusher structure, optimized laminated crushing cavity, intelligent automatic control system and innovative Internet control system make SH Single - Cylinder Hydraulic Cone Crusher have the performance characteristics that traditional cone crushers do not have. It can be widely used in medium crushing, fine crushing and ultra-fine crushing operations.
It is suitable for crushing all kinds of ores and rocks with high and over-medium hardness in medium,construction,water and electricity, transportation, chemistry and building material industry. Especially in the metal ore and construction of sand and gravel material is the most widely used.
1/ Multi-cavity crushing: medium and fine crushing of multiple cavities can be realized just by replacing fixed cone.
2/ High efficient lubrication and improved service life: Thin oil lubrication uses low viscosity oil as lubricant, reliable and advanced, and improved service life.
3/ High safety performance: Advanced hydraulic technology realizes overload protection and hydraulic adjustment of discharge chute.
4/ Multi-layers crushing, good granule type: the special crushing cavity shape and multi-layers crushing principle are adopted to generate the crushing effect among the particles, so that the proportion of cubes in the finished product is obviously increased, the number of flakiness is reduced, and the granule level is more uniform.
5/ High processing efficiency: the upper and lower ends of the main shaft of single cylinder cone crusher are supported, which can withstand greater crushing force and greater stroke, and the special crushing cavity shape adapted to the multi-layers crushing principle enables the machine to have higher crushing efficiency.

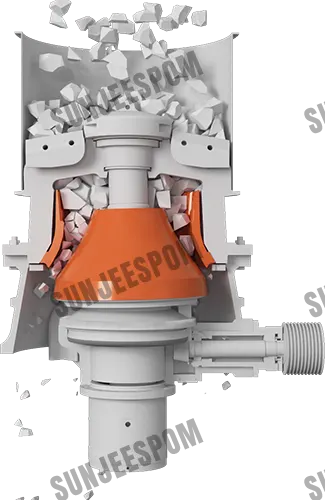

The electromotor leads the eccentric sleeve to rotate by the V-belt, drive shaft and drive gear. The movable cone does rotary and pendulum movement under the leading role of eccentric sleeve which makes the movable cone and fixed cone close and far away from time to time. The raw material is crushed in the crusher chamber by squeezing and striking continuously. The crushed stone discharges from the bottom.
| Model | Cavity Type | Maximum feed inlet size(mm) | Minimum Discharge Opening(mm) | Capacity t/h | Motor power(kW) | Weight (kG) |
| SH420S | S1 Extra coarse | 240 | 22 | 85-170 | 90 | 7350 |
| S2 Medium coarse | 200 | 19 | 70-130 | |||
| SH420 | H1 Fine | 135 | 10 | 45-130 | 5700 | |
| H2 Medium fine | 65 | 8 | 35-80 | |||
| H3 Extra fine | 38 | 4 | 27-60 | |||
| SH430S | S1 Extra coarse | 360 | 25 | 120-345 | 160 | 12000 |
| S2 Medium coarse | 300 | 22 | 105-305 | |||
| S3 Coarse | 235 | 19 | 90-275 | |||
| SH430 | H1 Fine | 185 | 13 | 60-210 | 9200 | |
| H2 Medium fine | 90 | 10 | 65-165 | |||
| H3 Extra fine | 50 | 6 | 48-105 | |||
| SH440S | S1 Extra coarse | 450 | 35 | 255-605 | 250 | 19300 |
| S2 Medium coarse | 400 | 29 | 215-515 | |||
| S3 Coarse | 300 | 25 | 190-490 | |||
| SH440 | H1 Fine | 215 | 16 | 110-395 | 14300 | |
| H2 Medium fine | 110 | 13 | 115-340 | |||
| H3 Extra fine | 70 | 8 | 90-225 | |||
| SH660S | S1 Extra coarse | 560 | 41 | 355-1050 | 315 | 35700 |
| S2 Medium coarse | 500 | 38 | 305-895 | |||
| SH660 | H1 Fine | 275 | 16 | 170-665 | 26800 | |
| H2 Medium fine | 135 | 16 | 190-505 | |||
| H3 Extra coarse | 65 | 13 | 205-320 |
It can be widely used in medium crushing, fine crushing and ultra-fine crushing operations.
It is suitable for crushing all kinds of ores and rocks with high and over-medium hardness in medium,construction,water and electricity,transportation,chemistry and building material industry.Especially in the metal ore and construction of sand and gravel material is the most widely used.
