Crushing and Sand Making Equipment
Feeding Size: 83-334mm
Capacity: 36-1034t/h

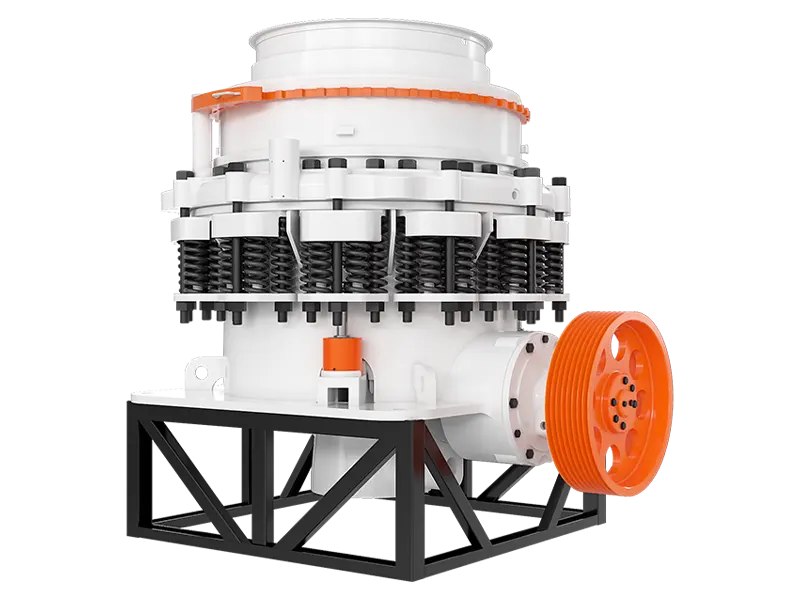

CS Series Cone Crusher concentrates on the specialty of high-frequency, optimization of cavity and reasonable impact. It is based on the conceptions of laminated crushing principle and more crushing and less grinding. It is researched and designed by our company, according to the customers’ requirement. This CS series cone crusher is widely used to crush metalliferous and nonmetalliferous ores, cement, construction and sand. The standard model is suitable for medium crushing, and the medium model is suitable for fine crushing and the short head model is suitable for fine crushing.
1/Adopt hydraulic cavity cleaning system and iron overload protection to reduce the time of maintenance and improve production efficiency.
2/The hydraulic system can adjust the discharge chute flexibly and automatically according to the final product size.
3/High automation degree of crushing equipment, large crushing ratio, high production efficiency and large processing capacity. The products that have been crushed are cubic in shape with low flakiness and high compressive strength.
4/The equipment is easy to maintain. The wearing parts are made of the latest domestic high - strength wear - resistant materials, which have less wear and longer service life, bringing considerable economic benefits for users.
In the working process of the cone crusher, the motor drives the eccentric sleeve to rotate through the drive, and the moving cone is rotating and swinging under the forced motion of the eccentric shaft. The moving cone is close to the section of the static cone and becomes the crushing chamber. The material is broken by the multiple extrusion and impact of the moving cone and the static cone. When the moving cone is away from the section, it has been crushed to the required size, and the material is falling under its own gravity and discharged from the cone bottom.
| Model | Cavity Type | Diameter of cone(mm) | Adjusting range of discharge opening(mm) | Max. Feeding Size(mm) | Capacity (t/h) | Motor Power (kw) | Weight(kG) |
| CS75 | Standard | 900 | 13-38 | 85 | 45-91 | 75 | 10.5 |
| Short head | 3-19 | 35 | 27-90 | ||||
| CS160 | Standard | 1295 | 13-51 | 115 | 109-181 | 160 | 22.6 |
| Short head | 3-25 | 54 | 36-163 | ||||
| CS250 | Standard | 1676 | 16-64 | 178 | 181-327 | 250 | 43.9 |
| Short head | 5-25 | 60 | 90-209 | ||||
| CS400 | Standard | 2134 | 19-64 | 236 | 544-1034 | 400 | 86.7 |
| Short head | 5-25 | 89 | 218-463 | 89.5 |
A variety of cavity types are available for a wide range of applications
The compound cone crusher consists of standard type and short-head type. Each type has four crushing cavity types: coarse, medium, fine and ultra-fine. It can crush materials with medium hardness or above.
