PF Impact Crusher

Feeding Size: 50-800mm
Capacity: 15-800t/h

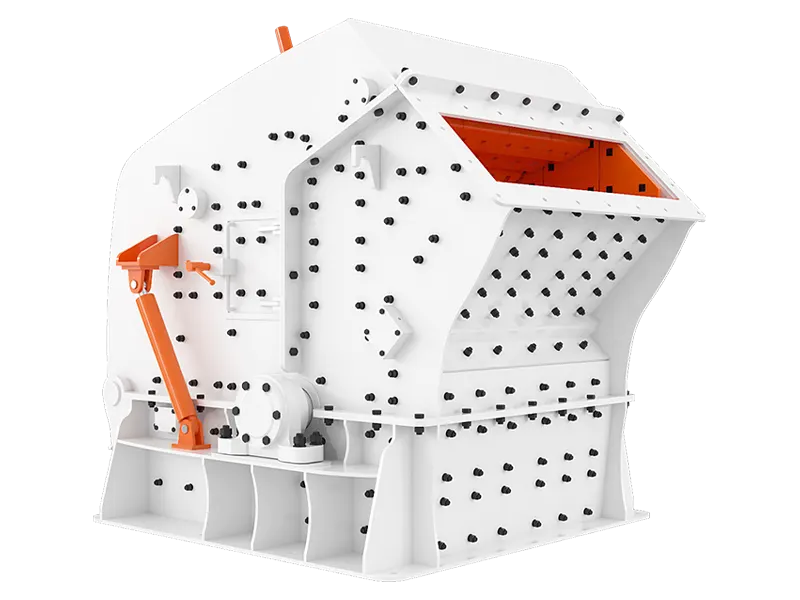

PF Impact Crusher

This kind of machine can crush stone (granite, limestone, concrete, etc.) with max feed size less than 500mm and compressive strength less than 350Mpa. lt is widely used for crushing ore in mining, highway, railway, construction, etc. Through the practice, impact crusher is an irreplaceable crushing equipment for high-grade sand and gravel.

Features and technology advantages

PF impact crusher can be used as secondary crusher and tertiary crusher.

PF impact crusher is an energy-saving crushing equipment, which can process all kinds of coarse, medium and fine materials with a side length of 100~600 mm or less and a compressive strength of not more than 350 MPa.

Applicable materials with a wide range of hardness and low energy consumption.

The plate hammer of the impact crusher is firmly fixed on the rotor by a mechanical clamping structure. When it rotates with the rotor, it has a large moment of inertia, which is suitable for crushing harder materials and has low energy consumption.

How it works

Impact crusher is a crushing machine that uses impact energy to crush materials. When the machine is working, driven by the motor, the rotor rotates at a high speed. When the material enters the action area of the plate hammer, it will collide with the plate hammer on the rotor and be broken, and then be thrown to the counterattack device to be broken again, and then it will be broken again from the counterattack lining plate. It bounces back to the action area of the plate hammer to be broken again. This process is repeated. The material enters the first, second and third counterattack chambers from large to small for repeated crushing until the material is broken to the required particle size and discharged from the discharge port. Adjusting the gap between the impact frame and the rotor can achieve the purpose of changing the material discharge particle size and material shape.

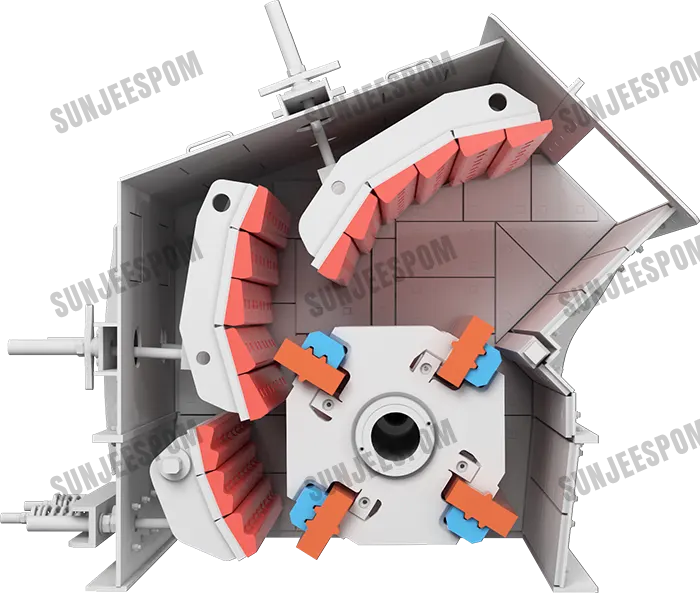

PF Impact Crusher working principle

Specification

ModelSpecificationFeed Opening Size(mm)Feeding size(mm)Capacity(t/h)Motor Power(kw)Overall Dimension(mm)
PF-1007Φ1000*700400*730≤25015-60452319*1654*2558
PF-1010Φ1000*1050400*1080≤30050-90552319*2001*2558
PF-1210Φ1250*1050450*1060≤30080-150902585*2053*2809
PFV-1214Φ1250*1400450*1440≤300100-2001322582*2403*2809
PFV-1315Φ1320*1500550*1530≤350130-2802002930*2761*3053
PFV-1320Φ1320*2000610*1900≤500180-4002803224*3175*2706
PFV-1520Φ1500*2000830*2040≤700300-550(220-250)*23959*3564*3330
PFV-1820Φ1800*20001260*2040≤800600-800630-7104400*3866*4009

From customer

Superior performance and reliable operation
The impact crusher has a light and reasonable structure design, mature crushing technology, and has a reliable and stable quality assurance.
